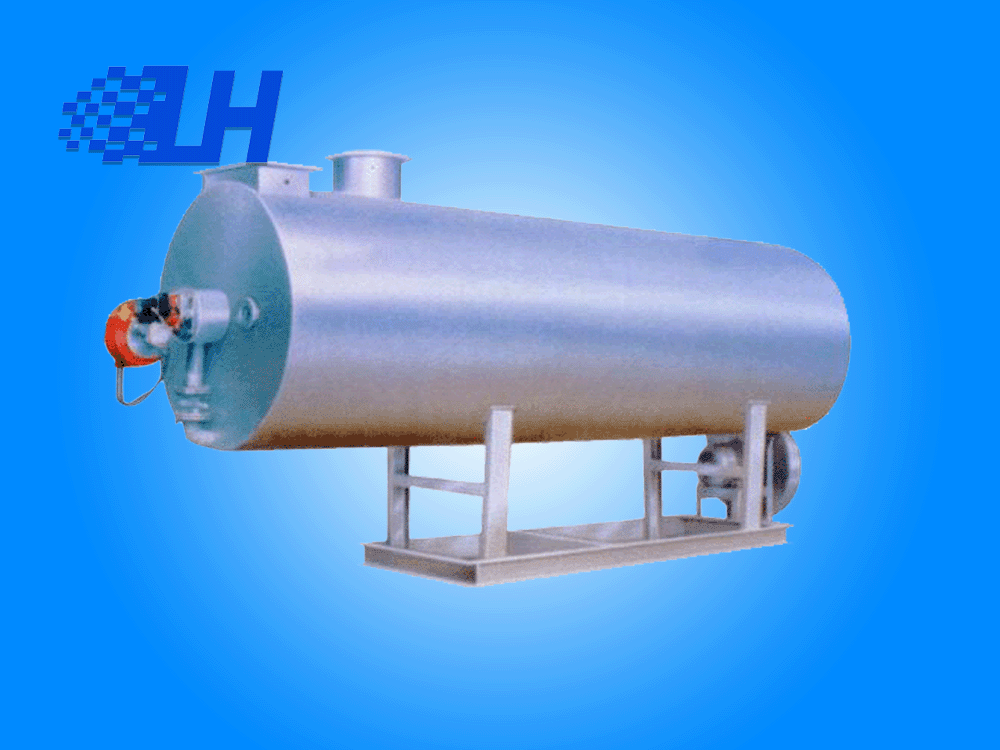

RLY series oil-fired hot air furnace

TEL:0519-88997189

Click:484

Product info

工作原理
   燃料通过燃烧器燃烧,产生高温燃气。并借助具有强化换热措施的热风炉将高温燃气的热量传导给被加热的空气,高温燃气经热量散发后温度降低至250℃后排到大气中。需加热的空气通过选配的鼓风机强送入热风炉,吸热后温度升至额定值从热风出口处送出,当热风温度达到额定温度上限时,燃烧器会自动停止燃烧或自动转为小火焰燃烧,当热风温度降低到额定下限温度时,燃烧器又会重新点燃运行或转为大火燃烧,升温的速度可以调节进风阀的开度来实现。


技术规格

型号 燃烧器型号 燃油量kg/h 供热量104kcal/h 外形尺寸L×W×Hmm 热风口L×Wmm 总重kg
RLY1 RIELLO.G3/DL3FS 1.3-1.6 1 1200×1200×1600 Φ200 460
RLY4 RIELLO.G10/DL10FS 5-6.5 4 1700×1300×1600 Φ250 850
RLY10 RIELLO.G20/DL23FS 13-16 10 2300×1568×1870 Φ300 2200
RLY20 RIELLO 1G/DL34FS 26-32 20 2800×1568×1870 Φ400 2670
RLY30 RL50/DL55FT 39-48 30 3400×1568×1870 Φ450 3060
RLY40 RL70/DL75FT 52-64 40 4440×1768×2070 Φ550 5600
RLY60 RL100/DL100FT 78-96 60 5140×1868×2070 Φ600 8460
RLY100 PRESS 4G/DL 120FT 130-140 100 6440×2480×2300 550×600 12800
RLY160 P300/DL250FT 200-270 160 7470×2920×3480 750×900 15780
RLY200 P300/DL300FT 260-300 200 8175×2920×3480 750×900 18500
RLY360 G1510 480-620 360
